Thermal resistance and electrical insulation are the advantages of thermoset parts. We offer special plasticizing units for the production of such parts. With geometries developed for this purpose, all mouldable thermoset materials can be processed on BOY injection moulding machines.

Application: Granulated, chemically crosslinked thermoset moulding compounds.

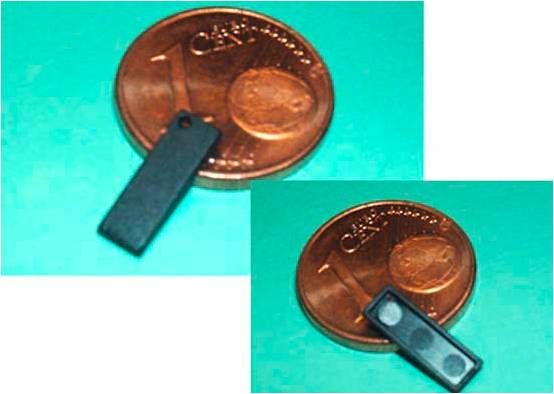

Application examples: Bobbins, parts for the electrical industry (e. g. fuse boxes), pot handles, belt tensioners, and other high-security applications.

Cylinder temperature is controlled by a heating-cooling fluid via external control unit.

• Screw without non-return valve.
• Coining and venting are available as options (BOY 55/90 standard).
• Mould temperature control via control loops in the machine (electrical heating elements are part of the mould).
• Air blast programs for mould cleaning is optional.
