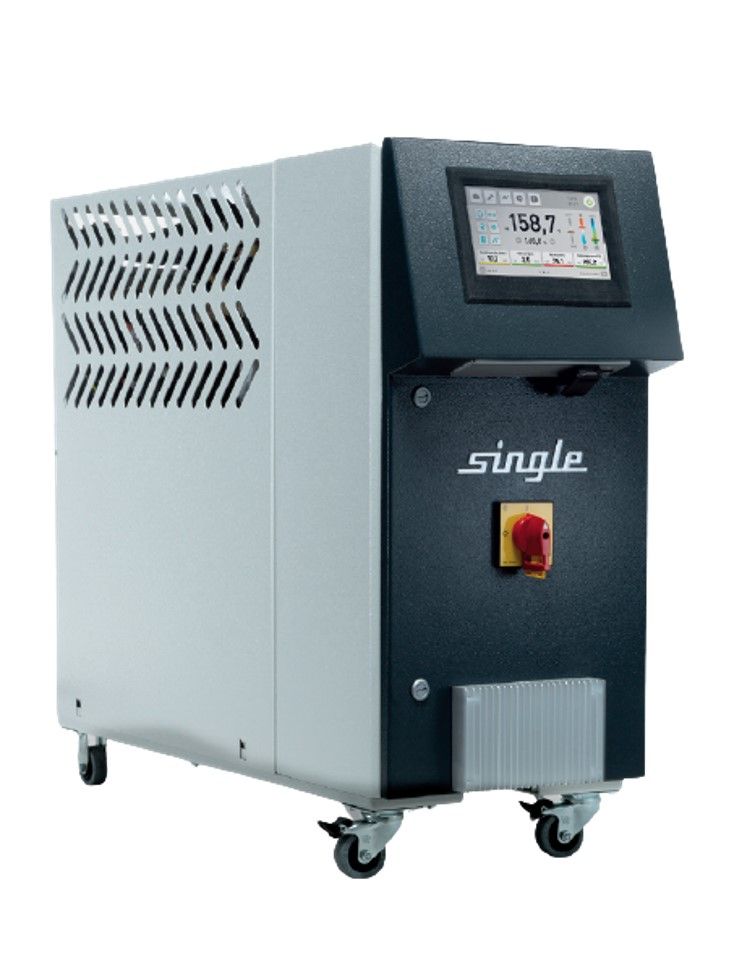

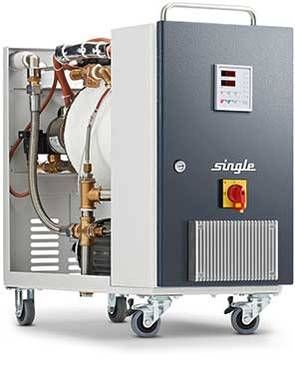

Water Compact

In contrast to heat-transfer oil, water used as a circulating medium provides numerous physical and economic benefits - particularly for high operating temperatures. The heat transfer characteristics of water are far superior to those of oil: its high specific heat transfer capacity is second to no other liquid media. Water also provides many ecological benefits.

The K and KN sizes of the Water Compact product family are equipped for operation far above the atmospheric boiling point with temperatures of up to 180 °C. They meet the most stringent safety requirements. The systems are extremely compact and are built exclusively with high-quality components.

Standard equipment

• General
• Rugged, powder-coated sheet steel housing
• Automatic filling and replenishing
• Roller mounted

Hydraulics

• Hydraulic equipment stainless steel / non-ferrous metals
• Incolloy heater
• High-quality pump materials
• Dirt traps in return and cooling water supply line
• Leak stop with TK and TKN
• Magnet-coupled pumps from 160 °C

Electric and control equipment

• SBC controller
• Heating control by solid state relay with fail-safe pilot contractor
• Switch box to IP54
• Cable connector without plug

Options

• SCT controller with 7" touch screen
• Plate heat-exchanger for highly efficient cooling capacity
• Flow metering according to the eddy current method up to 90 °C, according to the differential pressure method from 100 °C
• Connection for external PT 100 temperature sensor
• Connections for various analogue and digital electric interfaces
• EcoTemp system for cyclic temperature control
• Virtually unlimited hydraulic and electric options
